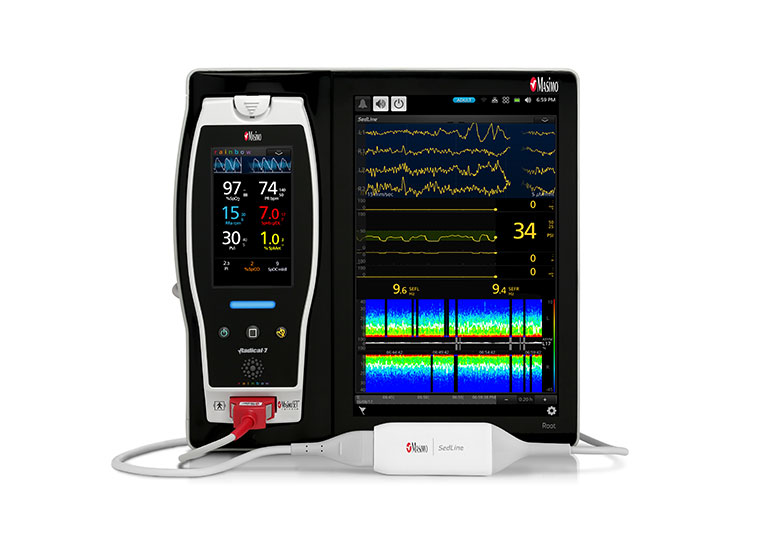

Root® with Next Generation SedLine Brain Function Monitoring helps clinicians monitor the state of the brain under anaesthesia with bilateral data acquisition and processing of electroencephalogram (EEG) signals.
Next Generation SedLine Features:
Next Generation SedLine utilises Masimo’s Parallel Signal Processing Engines to extract a clearer EEG signal and compute a processed EEG parameter (PSi) less influenced by EMG. EMG can interfere with EEG signals used in brain function monitoring. Researchers have found that EMG interference existed in up to 38% of monitored patients.1

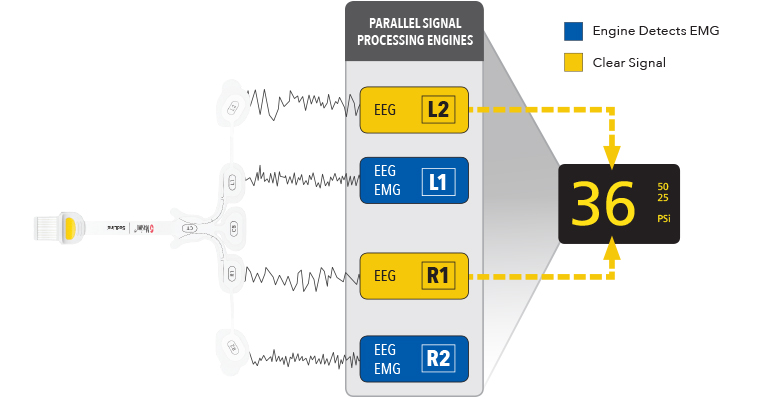

This image captures a moment when Next Generation SedLine detects EMG in the two engines depicted.

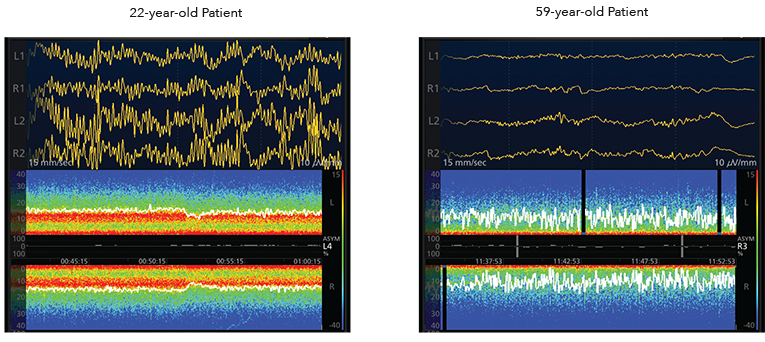

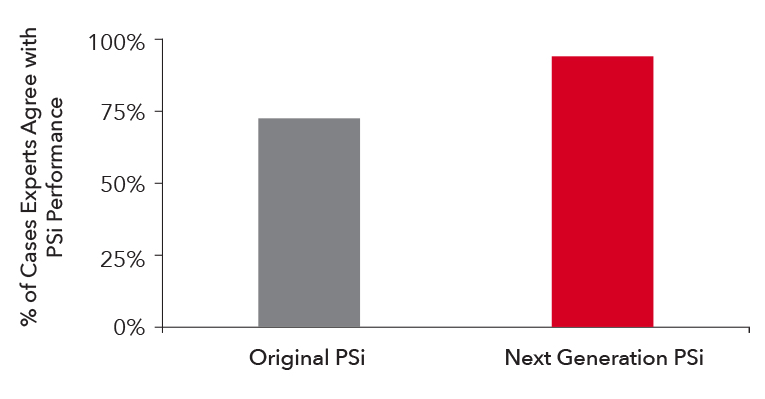

Power across all frequency bands decreases with age. Low power can present a challenge for conventional brain function monitors.2 Next Generation PSi uses adaptive signal processing with band-independent features to offer improved PSi performance in cases of low power EEG.
The subjects above were administered Propofol and were in a comparable anaesthetic state.3

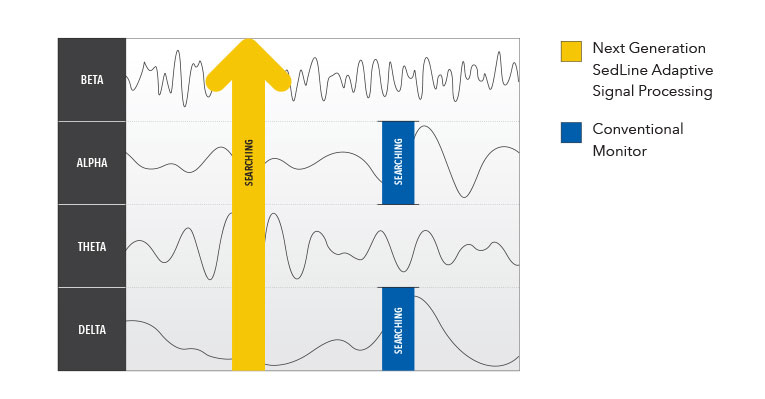

Next Generation PSi Searches For EEG Features Across Many Frequency Bands

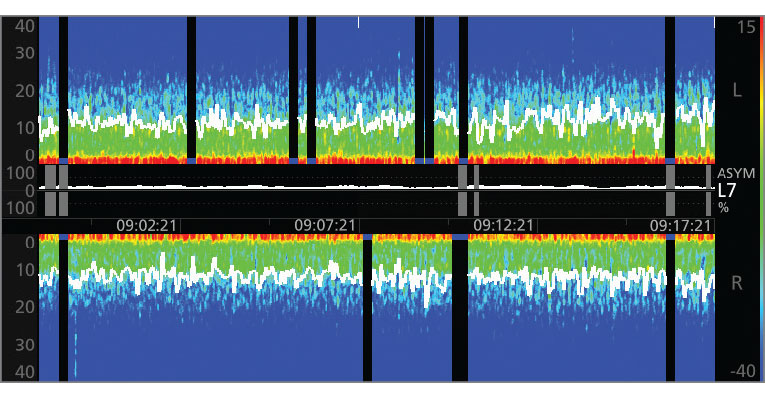

Next Generation SedLine offers clinicians the flexibility of choosing to display either an enhanced Multitaper Density Spectral Array (DSA) or a standard Hanning DSA. The DSA contains left and right spectrograms representing the power of the EEG on both sides of the brain.
When using a Multitaper DSA, EEG data are transformed into the frequency domain, which may provide a better display of EEG features.

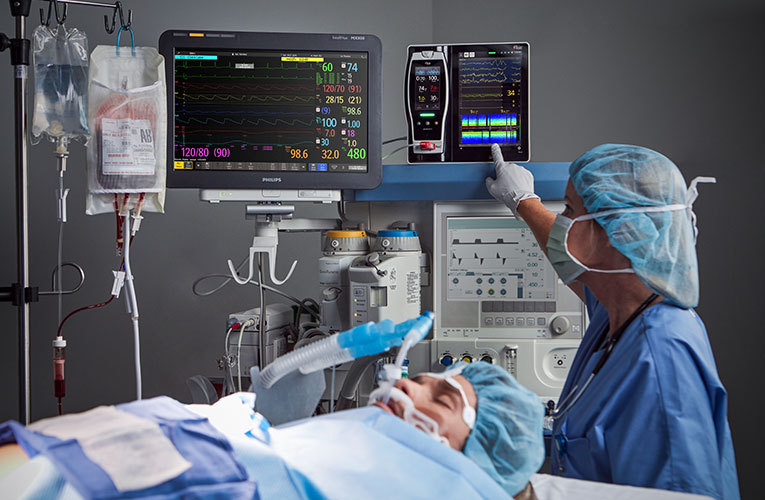

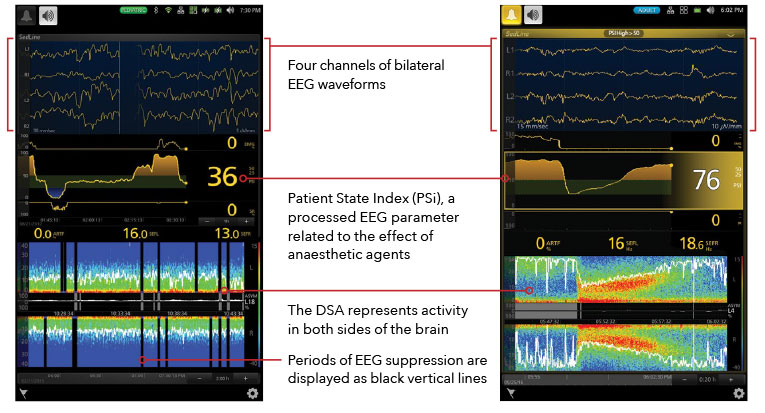

The Next Generation SedLine module easily plugs into the Root patient monitoring platform via Masimo Open Connect® (MOC-9®) ports. Root’s customisable, easily-interpretable display offers multiple views of brain monitoring information, expanding visibility in the operating theater and intensive care unit.

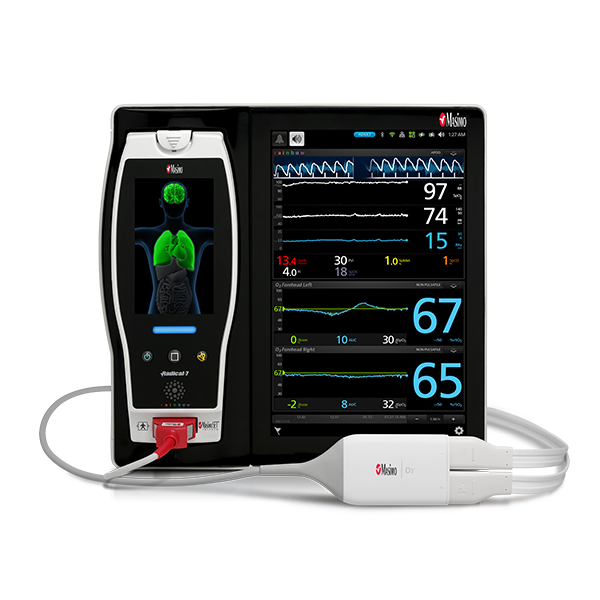

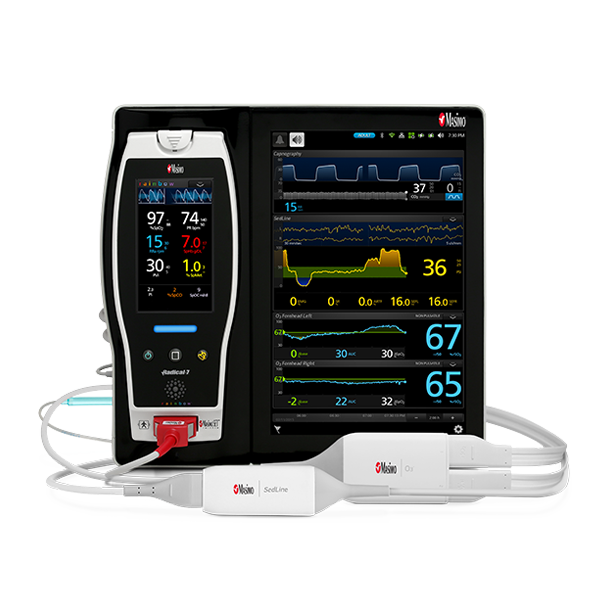

Next Generation SedLine can be used simultaneously with O3® Regional Oximetry on the Root platform for a more complete picture of the brain.

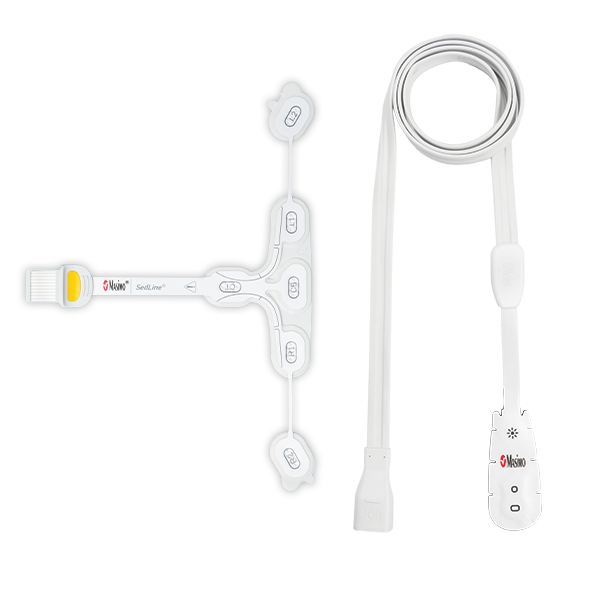

Explore the Root Platform and Brain Monitoring Sensors & Cables
Narasway et al. Critical Care Med. 2002 Jul;30(7):1483-7.
Purdon P L et al. British Journal of Anaesthesia. 10.1093 46-57.
Masimo Data on File.
For professional use. See instructions for use for full prescribing information, including indications, contraindications, warnings, and precautions.
